天然气撬装疏水阀-TTSS43-80

产品介绍:

优点:

可即时排除空气管路中的冷凝水,用于二次冷却器,储气罐及各种空气净化设备。
1、阀内装有新型SCCV方式耐用磨损性关闭系统,经久耐用。
2、具有优良的排水能力,结构简单、小型轻易。
3、阀内件全采用不锈钢、耐腐蚀性强,使用寿命长。


Product introduction

Merits:
The condensate water could be discharged at anytime,and used in aftercooler,gas storage tank ,and a variety of air cleaners.
1.The valve is equipped with a new SCCV type durable wear-resistant closing system, durable.
2.Outstanding capacity of discharging,simple structure and miniature and light.

3.All the components inside valve are all in stainless design,strong capacity in resistance


天然气撬装疏水阀技术参数及外形尺寸:

Natural gas skid mounted trap valve prytechnical parameters and dimensions


型号

Model

公称通径

Nominal

size

(mm)

公称压力

Nominal

 pressure

(MPa)

最高工作压力

Maximum

work

pressure

(MPa)

工作温度

Working

temperature

(℃)

排水量

Displacement

(M3/h)

外形尺寸

Outline size(mm)

L

H

H1

H2

L1

L2

TTSS43H-63

80

6.3

5.0

常温

Ambient temperature

50

626

1157

315

855

2000

1000

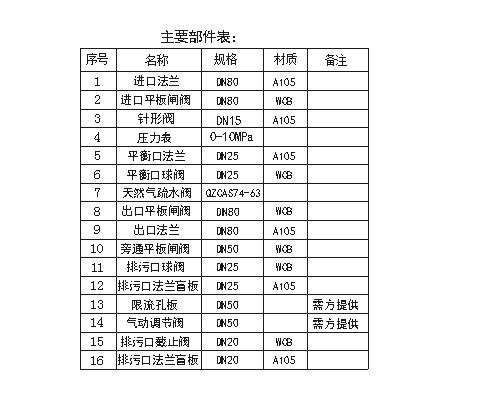

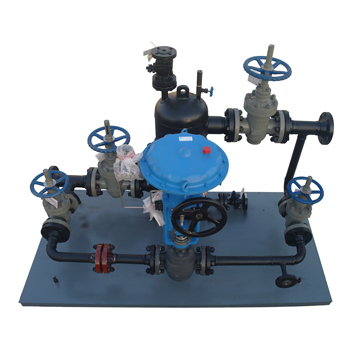

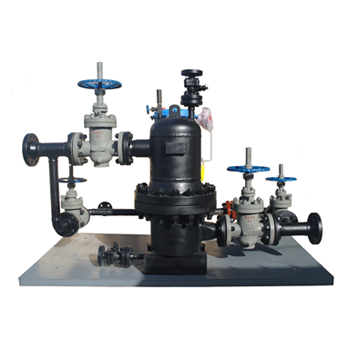

天然气撬装疏水阀

TSS43H型号天然气撬装疏水阀是一种全自动排液装置,该产品在不使用其它动力的条件下使天然气矿的气水分离器或天然气储罐中的沉积水(液)实现全自动排放,排放水(液)的过程中无天然气泄漏,避免了人工排工(液)带来的天然气损失(约为产量的1%),对确保供气质量、净化环境、实行清洁生产、消除安全隐患和改善劳动条件均具有显著的作用。

Natural gas skid mounted trap valve pry

TSS43H Natural gas skid mounted trap valve pry is a kind of automatic liquid discharge device, the product that sedimentary water gas water separator or gas tank gas in power without the use of other conditions (liquid) to achieve automatic discharge, waste water (liquid) without gas leakage in the process of avoiding artificial schedule (liquid) caused by natural gas losses (about 1% of production), to ensure supply of quality, purifying the environment, the implementation of cleaner production, eliminate safety hazards and improving working conditions have a remarkable effect.


一、功能特点:

1全天候全自动连续作业,有水就排,无水自动关闭,沉积水(液)排放率100%

2阻气严密,运行中无天然气泄漏,漏气率为零。

3自动沉降污物,实行定期排污。

4内件材料为全不锈钢,使用寿命长。

5安装方便,无需调试,运行平稳,安全可靠。

一、Functional characteristics

1. all-weather automatic continuous operation, there is water on the row, no water automatic shutdown, sink water (liquid) discharge rate of 100%.

2. gas tight, no gas leakage in operation, the leakage rate is zero.

3. automatic settlement of dirt, the implementation of regular sewage.

4. The inner material is all stainless steel with long service life.

5.easy installation, no debugging, smooth operation, safe and reliable.


、安装示意图:

在新开井工程中,天然气撬装疏水阀的安装,应在主体工程结束,完成系统试压和管道吹扫作业之后进行。若在安装疏水阀之后进行试压和吹扫管线,则应将天然气撬装疏水阀与系统隔离,启用旁通管线进行吹扫,以避免疏水阀内部受到污染。




Installation diagram

In the new open well project, the installation of the Natural gas skid mounted trap valve pry be carried out after the completion of the main project, the completion of the system pressure test and the pipe blowing operation. If you install the trap after the test pressure and purge pipe, you should skid trap and system isolation, enabling bypass pipeline for purging, in order to avoid contamination inside the trap



 、安装、维护:

1、该疏水阀应水平安装,在管线路较低位置,阀前应装截止阀、过滤器,同时安装旁通阀。

2、本疏水阀安装完毕,开启进口截止阀,再开启出口截止阀,疏水阀开始正常运行连续排水作业。

3、安装方向:阀体上的箭头指向与管道流体方向一致。

4、排污:由于在疏水阀运行时,会有杂质等污物随凝结水进入疏水阀腔内,应及时清除,以确保疏水阀的正常工作。排污时,首先关闭疏水阀前与后的截止阀,然后打开底部排污球阀,再慢开进口截止阀,以凝结水冲洗本阀内腔渣物,直至将内部冲洗干净为止。

5、为确保天然气撬装疏水阀橇装长期正常运行,疏水阀首次使用三个月,应进行第一次维护检查保养。第一次维护保养时须制造厂专业技术人员现场进行技术指导,对疏水器内部零件磨损、腐蚀情况和沉降污物情况进行检查和相应调整,并根据污物沉降等情况进行分析,为使用单位提供运行、排污等建议,便于使用单位确定保养检查和排污作业周期。

6天然气撬装疏水阀橇装投入运行后,即为全自动作业,无需人为操作,但仍须保持日常巡视管理工作。使用单位应坚持巡检制度,以便发现问题及时处理,并不断总结运行经验,结合本单位实际情况制定更加切实有效的切实有效的运行管理制度,使产品更好发挥应有的作用。

Installation and maintenance

1. the valve should be installed horizontally in the pipeline, the lower position, the valve should be installed before the cut-off valve, filter, and installation of bypass valve.

2. the trap installed, open the inlet stop valve, and then open the outlet stop valve, the trap began to run normally, continuous drainage operations.

3. Installation direction: the arrow on the valve body is in line with the direction of the pipe fluid.

4. sewage: as the trap running, there will be impurities and other contaminants, with the condensate into the trap cavity, should be cleared in time to ensure the normal operation of trap. When the sewage discharge, first closed the trap before and after the cut-off valve, and then open the bottom drain valve, and then slowly open the inlet stop valve, with condensed water to flush the valve cavity slag, until the internal rinse clean.

5. in order to ensure the trap skid skid installed for long-term normal operation, the trap for the first time three months, should be the first maintenance, inspection and maintenance. The first maintenance shall be factory of professional and technical personnel on-site technical guidance, to trap the internal parts wear, corrosion and deposition of dirt to inspect and adjust accordingly, and according to the analysis of sewage settlement, the use of units for operation, sewage and other suggestions, facilitate the use of maintenance and operation of sewage units to determine cycle.

6. skid mounted skid mounted operation, that is, fully automatic operation, without human operation, but still have to maintain routine patrol management. The use of units should adhere to the inspection system, in order to find problems in a timely manner, and constantly summarize the operation experience, to develop more effective effective management system combined with the actual situation of the unit, make the product better to play its due role.
